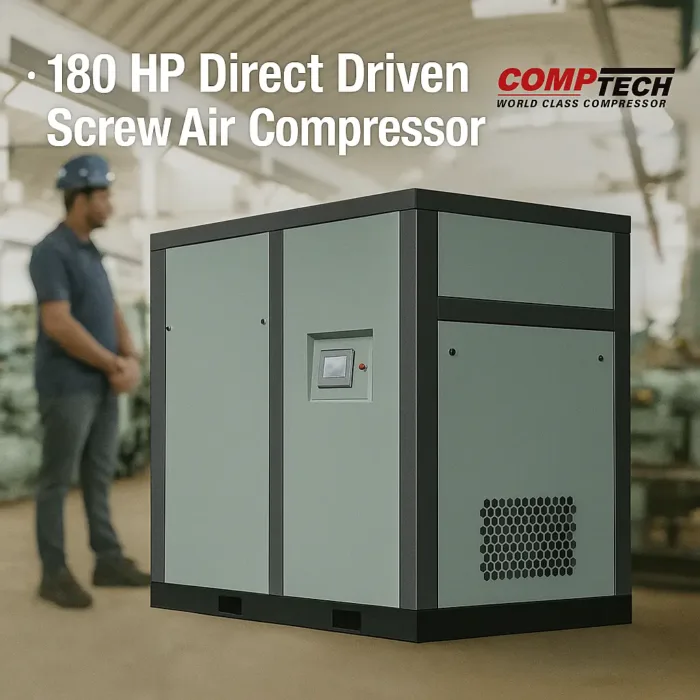

180 HP Direct Drive Screw Air Compressor – Power You Can Count On
The Comptech CTSD 180 HP Screw Air Compressor is built for industrial operations that require power, efficiency, and long-term reliability. It offers consistent airflow, smart control, and low energy use. As a result, you get a dependable compressor that performs under pressure—literally.
⚙️ Designed for Efficiency and Simplicity
To begin with, this model features a gearless, one-to-one direct drive system. Unlike belt-driven machines, it transfers energy directly from the motor to the air-end. Therefore, it runs more efficiently and requires less maintenance.
In addition, the motor is enclosed in a noise-reducing acoustic cabinet. This design lowers noise and vibration during operation. Consequently, your workspace becomes quieter and more comfortable for employees.
💨 Cleaner Air Means Longer Life
Clean air protects your system. That’s why this compressor includes a high-efficiency, dry-type suction filter. It removes 99.9% of dust particles larger than 3 microns.
Moreover, cleaner intake air keeps the compressor’s internal parts in better condition. This reduces wear, lowers the risk of breakdowns, and extends the life of the machine.
🔄 Smart Control That Responds Instantly
Air demand often changes throughout the day. Because of this, the CTSD 180 includes an advanced intake valve that adjusts air output in real time.
This means the compressor only delivers the airflow you actually need—nothing more, nothing less. As a result, you save energy and reduce operational costs without sacrificing performance.
✅ Key Benefits at a Glance
-
Gearless Direct Drive: More power, less energy loss
-
Low Noise Operation: Acoustic cabinet keeps sound levels at just 76 dB
-
Clean Air Intake: Removes 99.9% of particles ≥ 3 microns
-
Real-Time Airflow Control: Matches air output to demand instantly
-
Durable Construction: Oil-lubricated, air-cooled, and built for daily use
📊 Technical Specifications – CTSD 180 HP Screw Air Compressor
| Specification | Details |
|---|---|
| Horse Power | 180 HP |
| Air Tank Capacity | 3000 L |
| Maximum Flow Rate | 923 CFM |
| Power Source | Electric |
| Model Name/Number | CTSD 180 |
| Brand | Comptech |
| Weight | 2500 kg |
| FAD (at 10 kg/cm²) | 773 CFM |
| Dimensions (L×W×H) | 92 x 61 x 75 inches |
| Noise Level | 76 dB |
| Compressor Speed | 2900 RPM |
🏭 Perfect for Demanding Industrial Applications
This compressor performs well in industries like textiles, packaging, food processing, and automotive. Furthermore, it works reliably in high-temperature, dusty, or high-volume environments.
Whether you need continuous output or flexible airflow, the CTSD 180 adjusts to your needs. On the other hand, its smart features help reduce energy waste and improve efficiency.
